Weaving Process

     Generally, there are three sorts of the material manufacturing process; weaving, knitting and nonwoven. Among them, weaving technology is widely utilized in manufacturing fabric. the material is produced from weaving operation are called woven fabric.

The process of manufacturing fabric by interlacing warp and weft threads is understood as weaving. The machine used for weaving is understood as a weaving machine or loom. Different fabrics are produced in Weaving Industry. above menion fabric are weaved  used multi veries machine and related machines. Before going straightly to the Weaving process; some pretreatment and pre-process should be administered.

Before weaving various process are done. After the spinning process, yarn is split into two forms, one is weft form and another is warp form. Weft yarns are produced by cop winding and warp yarn are produced by the wool winding process. during this article, I will be able to give the working process flow chart of weaving.

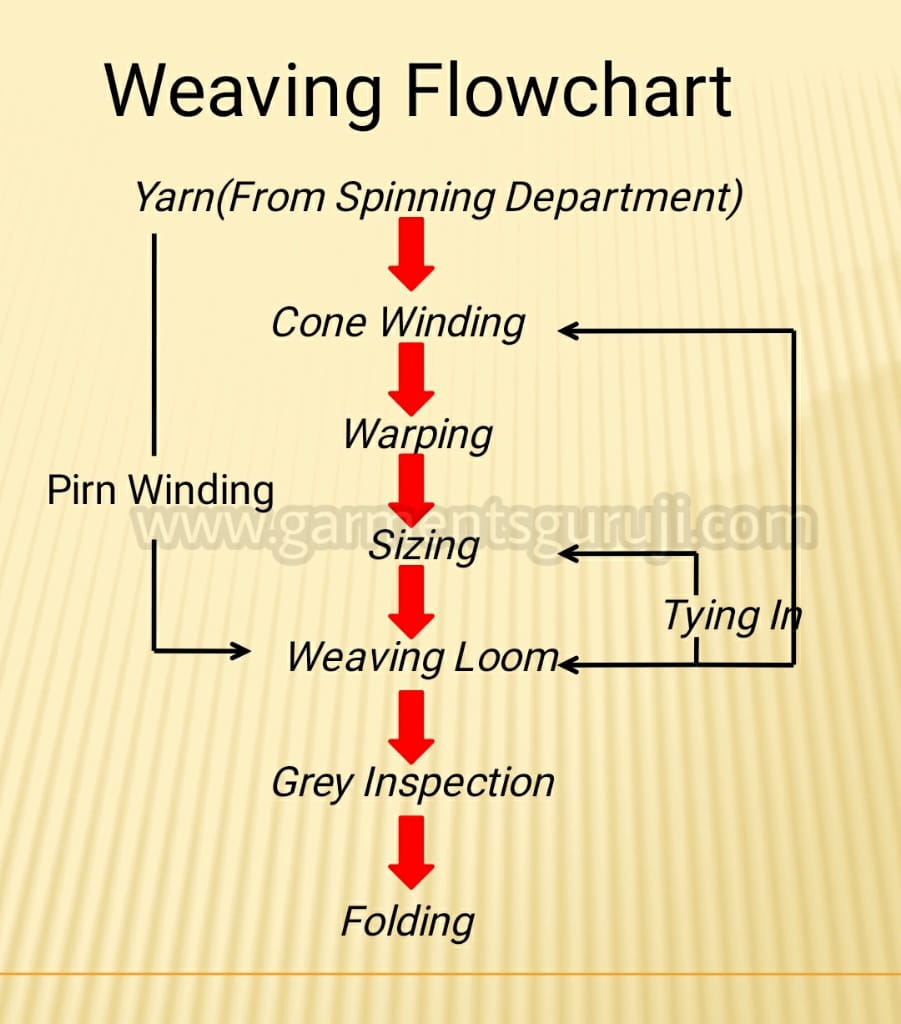

Weaving flow chat
Weaving Flowchart
Below Mention Full Brief Of weaving Process

Yarn preparation: Yarn collects from the spinning tradehowever, it must prepare an appropriate count and package.

Winding: Winding needs for getting ready appropriate yarn package. we all know that within the weaving method 2 sets of yarn is employed. Warp and yarn yarn. Warp yarn wind into a cone package. however yarn yarn wind into prin package for standard loom and cone package for a contemporary loom.

Distortion: Warping is meant to arrange the beam of the weaver to be put in on the weaving machine. distortion performs the subsequent operations:
Create, out of a restricted variety of warp threads (creel load), a warp composed of any variety of threads with the specified length.
Arrangement of the above-named threads in keeping with the specified sequence.
The industrial distortion method are often accomplished:
Sectional distortion (conical drum or indirect warping).
Beam distortion or direct warping (preparatory beam warping).

Filler: Sizing is that the implementation of the adhesive protecting layer before weaving within the warp threads. Warp yarns will resist the advanced stresses they’re subjected to within the weaving machine.

Weaver Beam Preparation: For long runs of grey materials, beam distortion is employed. As intermediate stage warper beams are created which will contain up to one,000 – 1100 ends. Then 6-12 warper beam threads are unified at the dynamical stage and wound on a weaver beam (loom beam).

Drawing: Drawing is completed to drag the threads of the warp through the heald wire’s eye.

 Denting: Denting signifies drawing the warp thread through the dent as reed set up needs, and this additional faithfully specifies the material dimension and ends per inches.

Looming: At the beginning of the new warp, the tail finish of the warp from the exhausted weaver beam is hooked upit’s referred to as tying-in. Therefore, the drawing mechanism could also be excluded if every finish of the new beam is hooked up to its ensuant endwise the previous beam. All knots are force through the drop wires, heddles, and reeds when the tying-in method. The loom is prepared to be used currently.

 Weaving: Finally Weaving is started et all method are going to be followed for delivery.

I have given the Weaving Process Video. wait And Watch It

I given the woven Fabric structure and machanics
